The Complete CO2 Refill Playbook: Mastering the "Razor and Blades" Model
If you are a regional distributor or an e-commerce brand owner selling soda makers, you are only capturing a fraction of the market's profit potential. The machine itself is merely the vehicle. The true, highly lucrative, and entirely passive recurring revenue lies within the CO2 refill ecosystem.
Consider the math: A standard 60L (425g) aluminum cylinder requires a CO2 refill every four to six weeks. When that cylinder runs empty, the consumer must return to your brand's exchange program. You charge a premium retail price for the CO2 refill, while your bulk liquid CO2 procurement cost from a local industrial gas supplier is exceptionally low. A dedicated CO2 refill station creates a closed-loop business that locks the consumer in for years.
The Hazmat Trap: Why Importing Filled Cylinders Destroys Margins
A devastating mistake novice distributors make is attempting to purchase pre-filled CO2 cylinders directly from overseas. Under international maritime law, pressurized CO2 gas is classified as UN 1066 Dangerous Goods (Hazmat).
Attempting to import filled cylinders triggers exorbitant freight surcharges, vessel rejections, and massive customs delays. The only scalable, profitable solution is to decouple the hardware from the gas. You import empty DOT/TPED aluminum cylinders and our industrial CO2 refill machines, and you procure the bulk liquid CO2 locally. You effectively become the regional CO2 refill plant.
Industrial Pneumatic CO2 Refill Technology
Transferring liquid CO2 from a massive, low-pressure industrial mother tank into a small, high-pressure 60L consumer cylinder is a complex fluid dynamics challenge. If you attempt to use a cheap electric pump for a CO2 refill, the gas will rapidly expand, freezing the internal lines solid and destroying the pump seals.

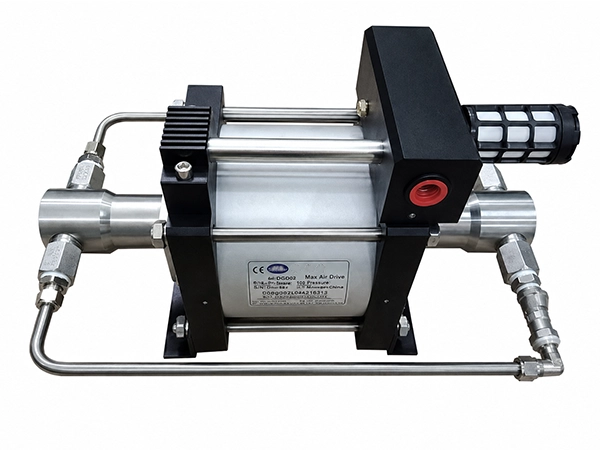

Our CO2 refill equipment abandons dangerous electrical drives in favor of an advanced Pneumatic Booster Pump System. Driven entirely by compressed air, this specific CO2 refill architecture offers two massive advantages:
- Zero Spark Risk: Because the CO2 refill pump is driven entirely by driven air rather than electrical motors, there is absolutely zero risk of electrical sparking in a high-pressure gas zone.
- Liquid State Transfer: The reciprocating action ensures the CO2 is transported and filled strictly in a high-pressure liquid state, preventing "dry ice blockage" inside your CO2 refill station.
PLC Accuracy in CO2 Refill Operations
Safety and legal accuracy are paramount. You cannot rely on an operator manually guessing when a bottle is full. Over-pressurizing a cylinder during a CO2 refill turns it into a lethal hazard.

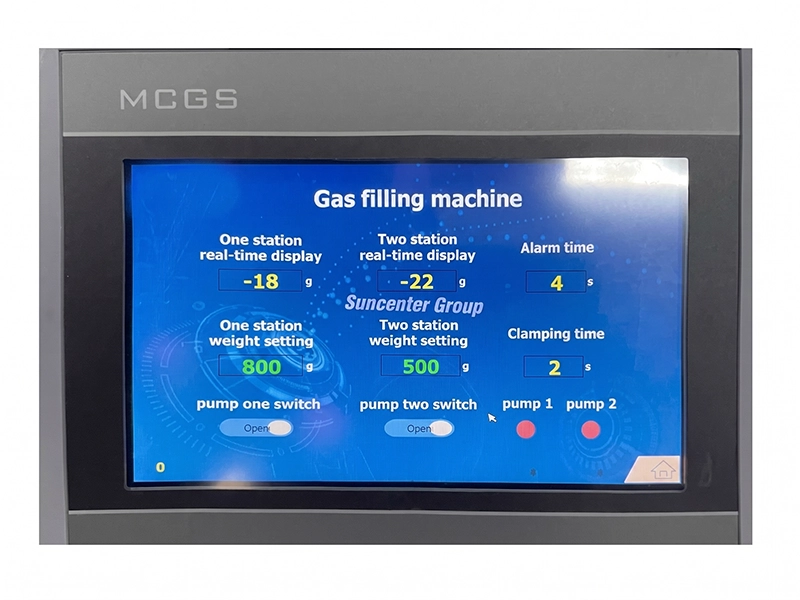

Our CO2 refill machines are equipped with an industrial PLC Control Panel paired with an MCGS touch screen interface. The CO2 refill station rests the target cylinder on a highly sensitive digital scale. The operator inputs the exact weight setting (e.g., exactly 425 grams for a standard 60L bottle). As the pneumatic pump drives the liquid gas during the CO2 refill cycle, the PLC monitors the real-time weight display. The exact millisecond the scale registers the target payload, the PLC triggers an automatic pump switch to instantly shut off the flow, guaranteeing a CO2 refill accuracy of ± 5 grams.
| CO2 Refill Component | Function & Industrial Benefit |
|---|---|
| Pneumatic Booster Pump | Drives liquid CO2 without electrical sparks; prevents freezing during the CO2 refill. |
| MCGS Touch Interface | Allows operators to input exact weight presets and monitor real-time CO2 refill progress. |
| PLC Controller | Automatically cuts off the pump switch when target weight is achieved to prevent explosion. |

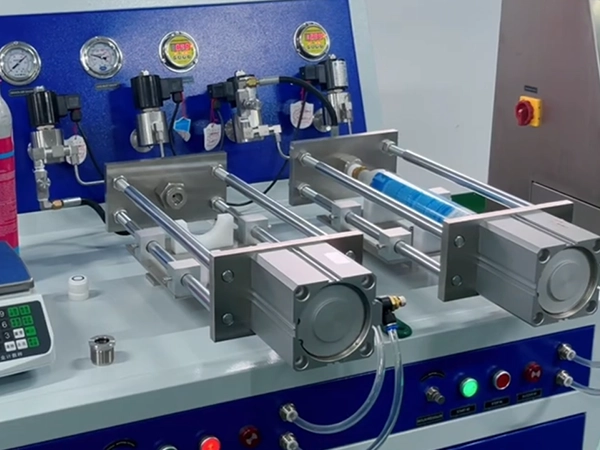

| Pneumatic Clamp | Secures the cylinder pin-valve instantly, preventing high-pressure blowout during the CO2 refill. |
CO2 Refill Equipment FAQ Guide
To help you navigate the highly profitable gas exchange business, our engineering and commercial teams have compiled the 30 most critical questions asked by global distributors regarding CO2 refill stations, logistics, and cylinder management.
Table of Contents
Part 1: Machine Operation & Engineering
1. What specific type of air compressor is required for the CO2 refill machine?
Because our CO2 refill booster pump is completely pneumatic, you must supply an external air compressor. A standard industrial compressor delivering a stable 3 to 8 Bar (45 to 115 PSI) of air pressure is required to drive the reciprocating pump during the CO2 refill cycle.
2. What kind of mother tank do I need for the CO2 refill station?
You must request a Liquid CO2 Tank with a Siphon Tube (Dip Tube) from your local gas supplier. This internal tube draws heavy liquid CO2 from the bottom of the master tank. If you use a standard gaseous tank, the CO2 refill machine will operate too slowly and freeze the pneumatic lines.
3. Why pneumatic over electric for CO2 refill equipment?
Pneumatic pumps are spark-free, ensuring absolute safety in high-pressure CO2 refill zones. Additionally, they pressurize proportionally, transferring the CO2 in a liquid state rather than allowing it to expand into a gas, which drastically improves the CO2 refill speed.
4. What is the fill speed per cylinder on a CO2 refill machine?

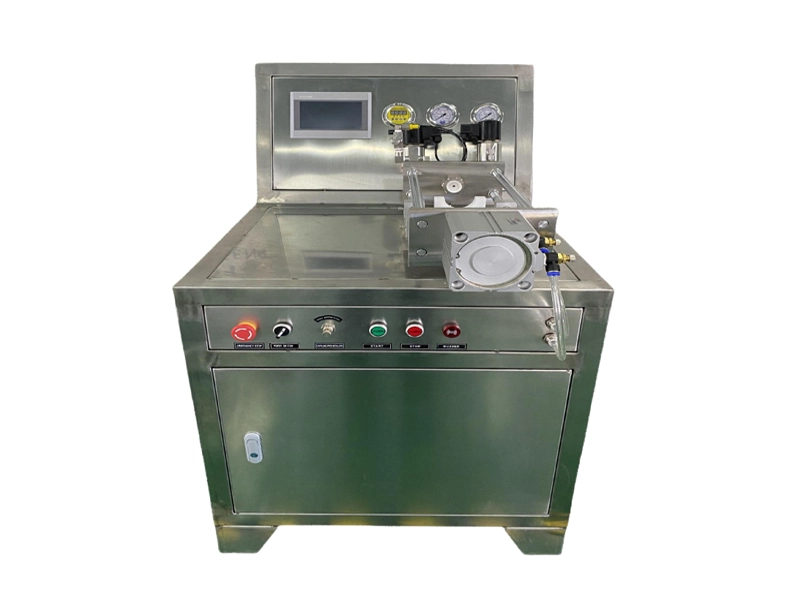

Depending on your air compressor's stability, a single CO2 refill cycle takes approximately 30 to 45 seconds. A Single-Station CO2 refill machine can comfortably process 60 units per hour, while a Dual-Station CO2 refill setup handles up to 140 units per hour.
5. What is the PLC accuracy on the CO2 refill equipment?

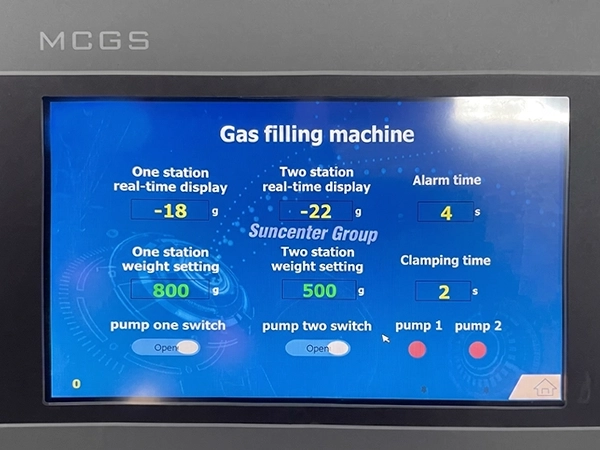

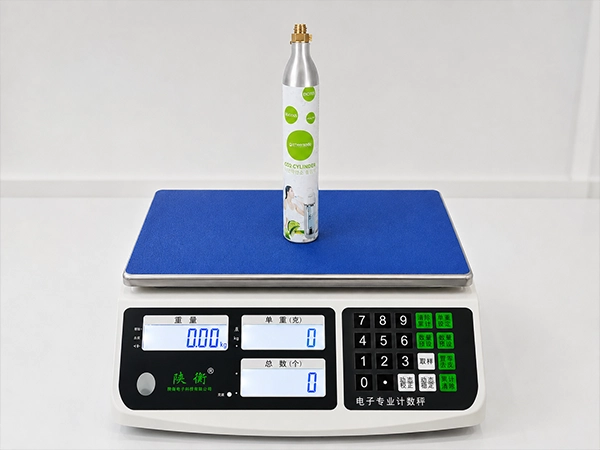

The MCGS touch screen and PLC controller are synced to a highly sensitive digital scale, delivering a CO2 refill accuracy of ± 5 grams. Once the target weight is hit, the PLC automatically shuts off the CO2 refill pump.
6. Why do lines freeze during a CO2 refill operation?
Freezing occurs when CO2 is allowed to rapidly expand into a gas during a CO2 refill. This usually means your mother tank lacks a siphon tube, or your air compressor pressure is set too low to drive the liquid state efficiently through the CO2 refill equipment.
7. What is the footprint of a commercial CO2 refill station?

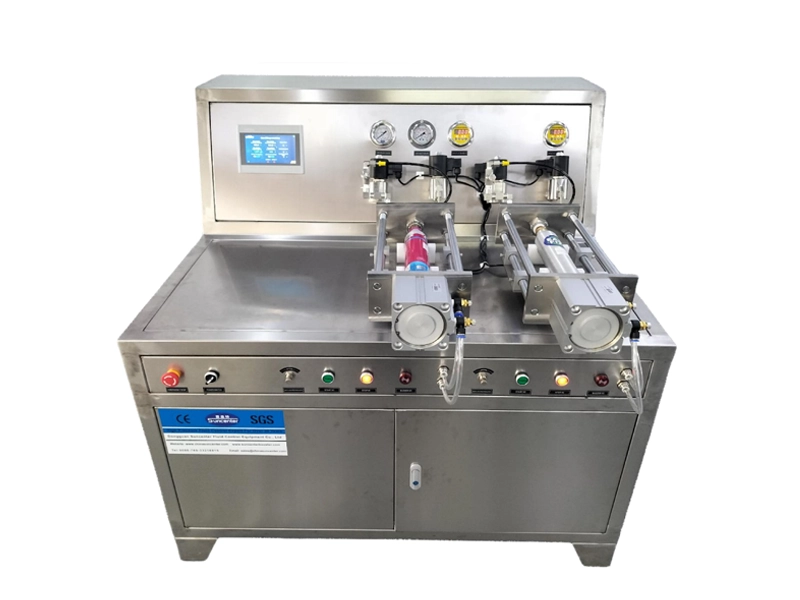

Our Single and Dual-Station CO2 refill machines are designed as compact, vertical industrial units. They typically require less than 2 square meters of floor space, making them perfect for tight warehouse setups executing a local CO2 refill program.
8. What is the maintenance schedule for the CO2 refill machine?
The primary wear parts are the polyurethane seals inside the CO2 refill booster pump and the silicone O-rings in the clamping head due to extreme thermal cycling. We provide a toolkit and a bulk pack of replacement seals. Swapping a seal on the CO2 refill equipment takes under 10 minutes.
Part 2: Soda Maker Cylinder Compatibility & Safety
9. What is the target fill weight for a 60L soda maker CO2 refill?
A standard aluminum cylinder designed to yield 60 Liters of sparkling water should receive a CO2 refill of exactly 425 grams of liquid CO2. Over-filling risks explosion, while under-filling leads to customer complaints.
10. What is the thread compatibility for the CO2 refill station?
Our engineering team precision-mills the brass filling clamps on the CO2 refill equipment to match your market. We supply adapters for the global consumer standard TR21-4, as well as CGA320 for North American commercial CO2 refill applications.
11. What are the burst pressure limits for cylinders during a CO2 refill?
Safety during a CO2 refill is absolute. While operational pressure sits around 90-130 PSI, our cylinders are hydrostatically burst-tested to withstand up to three times standard pressure before structural failure occurs.
12. Do you supply empty cylinders alongside CO2 refill equipment?
Yes, we are a comprehensive OEM manufacturer. We produce premium, seamless 60L aluminum cylinders equipped with precision brass pin-valves, shipped 100% empty to support your local CO2 refill business.
13. DOT vs TPED certification for CO2 refill operations?
Depending on your destination country, our cylinders are stamped and certified under DOT for North America, or TPED (PI Mark) for the European Union, ensuring full legal compliance for your CO2 refill center.

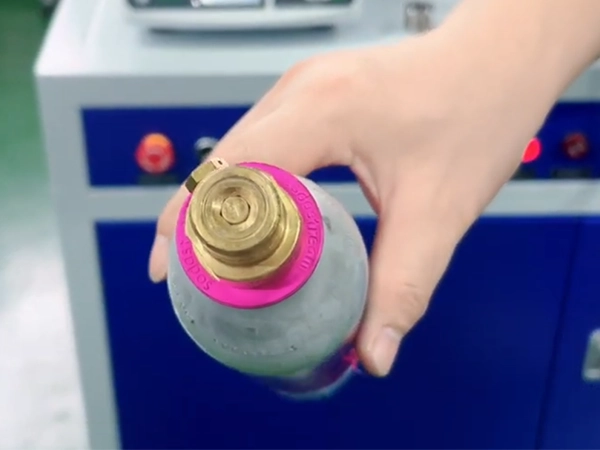

14. How to prevent pin-valve leakage after a CO2 refill?
Leakage after a CO2 refill occurs if the internal valve spring is damaged by excessive clamping force. Our pneumatic clamp on the CO2 refill machine is calibrated to apply the exact pressure needed to seal without crushing the brass mechanism.
15. Is quick-connect cylinder compatible with your CO2 refill machine?
Yes. If your market requires the newer pin-lock or "pink-cylinder" quick-connect systems, we can machine custom clamping heads for the CO2 refill station designed specifically for those non-threaded bottle necks.
Part 3: Logistics & Supply Chain
16. Importing filled cylinders vs. using local CO2 refill equipment?
Importing filled cylinders destroys your profit margin. Ocean freight for hazardous materials is exorbitantly expensive. The profitable route is importing empty cylinders and executing the CO2 refill locally using our CO2 refill stations.
17. How do empty cylinders bypass UN 1066 for CO2 refill businesses?
Empty aluminum cylinders contain zero pressurized gas prior to the local CO2 refill. Therefore, they are classified as standard general cargo, not UN 1066 Class 2.2 Dangerous Goods. You pay normal shipping rates.
18. What are the lead times for manufacturing a CO2 refill station?
Due to the industrial nature of the PLC programming and pump calibration, the standard lead time for Single and Dual CO2 refill machines is 25 to 30 days before ocean freight loading.
19. What is the 20ft container capacity for empty cylinders?
By optimizing our palletization, a standard 20GP container can accommodate approximately 12,000 to 14,000 empty 60L aluminum cylinders, heavily reducing your landed cost per unit before the CO2 refill process.
20. What is the 40HQ capacity for a complete CO2 refill equipment setup?
A 40ft High Cube (40HQ) container offers the best freight economics, holding upwards of 32,000 empty cylinders alongside your purchased CO2 refill machines, depending on the final packaging configuration.
21. Do you quote FOB or CIF for CO2 refill machines?
Our default quotation for CO2 refill equipment is FOB Qingdao or FOB Shenzhen. However, our logistics department can readily provide CIF (Cost, Insurance, and Freight) pricing to your destination port.
22. Do you offer DDP shipping for CO2 refill stations?
Yes. Through our network of top-tier freight forwarders, we can execute DDP (Delivered Duty Paid) shipping via sea freight for your CO2 refill machines, handling all customs clearance on your behalf.
23. What customs documentation accompanies the CO2 refill equipment?
We provide a full suite of export documents including the Bill of Lading, Commercial Invoice, Packing List, and the required DOT/TPED certificates to ensure your broker clears the CO2 refill equipment effortlessly.
Part 4: Business Strategy & OEM Customization
24. What is the MOQ for purchasing a CO2 refill machine?
For our commercial CO2 refill stations, there is an MOQ of just 1 unit. For the empty 60L aluminum cylinders to supply your CO2 refill center, our standard MOQ starts at 3,000 units to justify custom branding.
25. Can you apply private label wrapping for cylinders processed at the CO2 refill station?
Yes. As an OEM manufacturer, we apply full-body PVC shrink-wrap sleeves or perform direct silkscreen printing on the empty cylinders, ensuring your brand stands out when customers return for a CO2 refill.
26. ROI: 1-Station vs. 2-Station CO2 refill equipment?

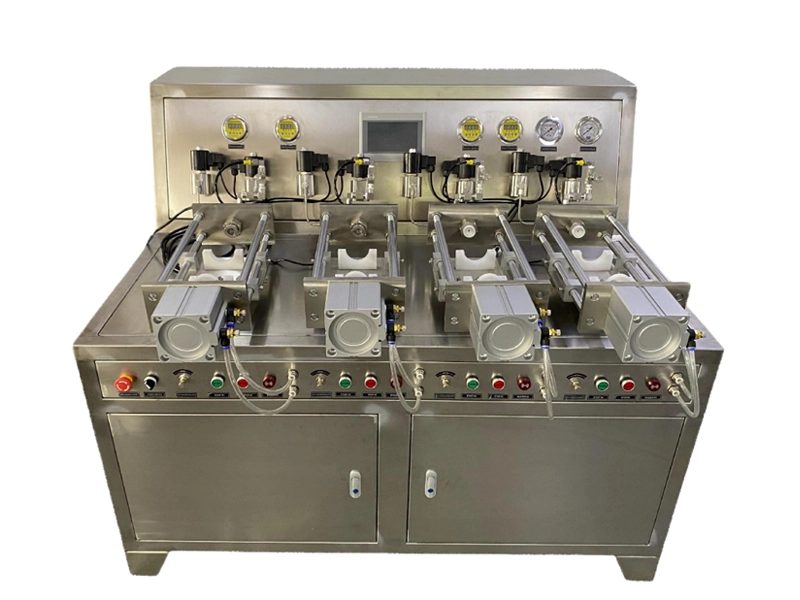

If you process fewer than 300 bottles a day, a Single-Station CO2 refill machine is sufficient. If you supply local supermarkets and process over 500 bottles daily, the Dual-Station CO2 refill system is necessary as it doubles throughput without increasing labor.
27. What are the payment terms for commercial CO2 refill machines?
We require a 30% deposit via T/T (Telegraphic Transfer) to commence assembly of your CO2 refill equipment. The remaining 70% balance is due prior to vessel loading, following your QC inspection.
28. What are the factory warranties on the CO2 refill station PLC and pumps?
We provide a 12-month factory warranty against manufacturing defects on the PLC controller, valves, and core pneumatic components of the CO2 refill machine (effective from the B/L date).
29. Can I get exclusive agency rights for CO2 refill equipment distribution?
Yes. We strongly protect our premium partners. Exclusive national or regional rights for distributing our CO2 refill stations are granted upon signing an agreement detailing an annual minimum volume commitment.

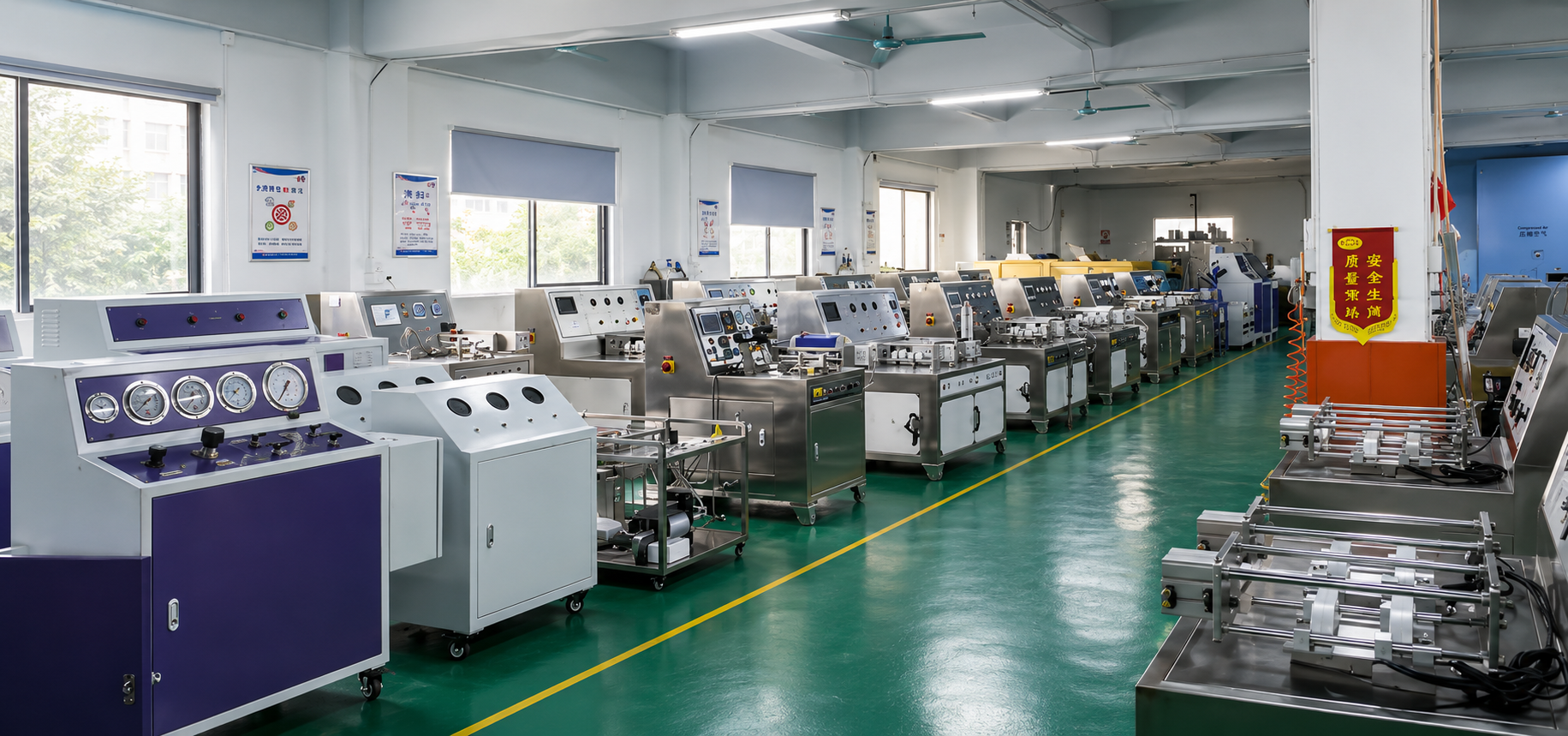

30. Can I conduct factory audits before buying a CO2 refill machine?
We highly encourage it. We operate with 100% transparency. You are welcome to send international auditing firms like SGS or TUV to our facility to inspect the CO2 refill machinery before the final balance is paid.
Ready to Dominate the Gas Exchange Market?
Stop losing recurring revenue. Provide us with your target market and estimated weekly cylinder volume, and we will quote the exact CO2 refill pneumatic setup your warehouse requires.
